Crossed Tapered Roller Bearing: A Robust Solution for High-Speed Applications

Crossed tapered roller bearings are a popular type of bearing widely used in industrial applications, especially where high speed and heavy loads are involved. This type of bearing is designed to handle axial and radial loads simultaneously and has high stiffness and load-carrying capacity. In this article, we will discuss the construction, advantages, and applications of crossed tapered roller bearings.

Construction of Crossed Tapered Roller Bearings

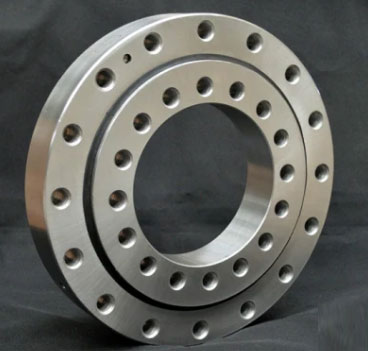

Crossed tapered roller bearings consist of two sets of tapered rollers arranged at an angle to each other. The inner and outer rings of the bearing are tapered and have a common center point. The tapered rollers are guided by the cage, which separates them and keeps them in a specific position. The cage is usually made of brass or steel, and it ensures the rollers are evenly spaced around the bearing.

Advantages of Crossed Tapered Roller Bearings

One of the primary advantages of crossed tapered roller bearings is their ability to handle both axial and radial loads. This feature makes them an ideal choice for applications that require high speed and heavy loads. They also have a high stiffness and load-carrying capacity, which makes them suitable for machine tool spindles, robotics, and other precision applications. Another advantage is their compact design, which helps reduce the overall size of the machine or equipment.

Applications of Crossed Tapered Roller Bearings

Crossed tapered roller bearings are used in a wide range of applications, including machine tool spindles, robotics, printing presses, construction equipment, and wind turbines. They are commonly used in applications that require high-speed operation, precise positioning, and heavy load capacity. For example, machine tool spindles require high precision and accuracy, and crossed tapered roller bearings provide the necessary support for these spindles to operate at high speeds while maintaining the required accuracy. Similarly, wind turbines require bearings that can handle heavy loads and operate at high speeds, and crossed tapered roller bearings are an ideal solution for these applications.

Conclusion

Crossed tapered roller bearings are a robust and versatile solution for high-speed applications that require heavy loads and precise positioning. Their ability to handle both axial and radial loads simultaneously, high stiffness and load-carrying capacity, and compact design make them an ideal choice for various industrial applications. With the growing demand for high-speed and precision machinery, the use of crossed tapered roller bearings is likely to increase in the coming years.
