Backing bearings
Backing bearing is a special cylindrical roller bearing. Multiple backing bearings are mounted on one roll. The external surface of each backing bearing is used as part of the rolling surface. So, it is required that the backing bearings shall have unifor
Get Prices
Leave MessageBacking bearing is a special cylindrical roller bearing. Multiple backing bearings are mounted on one roll. The external surface of each backing bearing is used as part of the rolling surface. So, it is required that the backing bearings shall have uniform cross sections. The precision requirements for their parts are very strict.

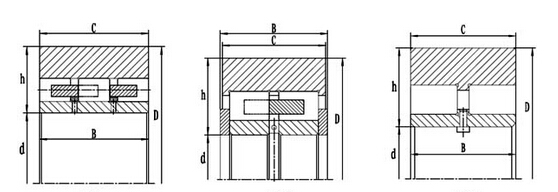

Boundary dimensions | Basic load ratings | Mass | Structure | Designations | |||||
mm | kN | kg | |||||||
d | D | B | C | Cross section H | Cr | Cor | |||
70 | 160.02 | 90 | 90 | 44.971 | 375 | 650 | 11.5 | 1 | 14HG3290 |
90 | 220.02 | 94 | 94 | 65 | 620 | 870 | 21 | 3 | 18HG4494 |
90 | 220.02 | 94 | 94 | 65 | 740 | 1100 | 21 | 3 | 18HG4496 |
90 | 220.02 | 96 | 94 | 65 | 550 | 780 | 22.2 | 2 | 18HG4494 |
90 | 220.02 | 96 | 94 | 65 | 460 | 630 | 20 | 2 | 18HG44120 |
90 | 220.02 | 120 | 120 | 65.01 | 670 | 1120 | 28.5 | — | 18HG44120Z |
90 | 220.02 | 120 | 120 | 65 | 790 | 1530 | 28.6 | — | 18HG44120Z1 |
100 | 225 | 120 | 119 | 62.5 | 770 | 1310 | 26 | 2 | 20HG45120X |
100 | 225 | 120 | 119 | 62.5 | 650 | 1050 | 26 | 2 | 20HG45120X1 |
100 | 225 | 120 | 119 | 62.5 | 710 | 1170 | 26 | 2 | 20HG45120X2 |
100 | 225 | 120 | 120 | 62.5 | 735 | 1380 | 27.7 | 1 | 20HG45120X3 |
110 | 260 | 98 | 98 | 75 | 700 | 1010 | 31.9 | 2 | 22HG5298 |
130 | 300.02 | 130 | 129 | 85.01 | 1040 | 1560 | 54.9 | 2 | 26HG60130 |
130 | 300.02 | 132 | 129 | 85.01 | 1040 | 1560 | 56.5 | 2 | 26HG60132 |
130 | 300.02 | 150 | 149 | 85 | 1200 | 1860 | 60 | 2 | 26HG60150 |
130 | 300.02 | 161.5 | 160.5 | 85. | 1200 | 1880 | 54.9 | 2 | 26HG60161 |
130 | 300.02 | 172.65 | 171.6 | 85. | 1440 | 2370 | 71.3 | 2 | 26HG60172 |
130 | 300.02 | 172.65 | 171.6 | 85.01 | 1440 | 2370 | 73.5 | 2 | 26HG60172X |
130 | 300.02 | 172.64 | 172.6 | 84.955 | 1500 | 2700 | 74.8 | 1 | 26HG60172X2 |
130 | 300 | 159.5 | 160 | 85 | 1395 | 2500 | 66.1 | 1 | 26HG60159 |
180 | 406.4 | 171.04 | 170 | 113.2 | 1710 | 3000 | 125 | 2 | 36HG81171 |
180 | 406.4 | 224 | 220 | 113.2 | 1910 | 3450 | 174 | 2 | 36HG81224 |
180 | 406.42 | 176 | 170 | 113.2 | 1710 | 3000 | 136 | 2 | 36HG81176 |
180 | 406.42 | 217 | 217 | 113.143 | 2500 | 4900 | 136 | 2 | 36HG811217 |
180 | 406.42 | 224 | 224 | 113.2 | 2600 | 1790 | 169 | 1 | 36HG81224X |
205 | 520 | 168 | 168 | 157.5 | 2570 | 3960 | 218 | 3 | 102HG104168 |
